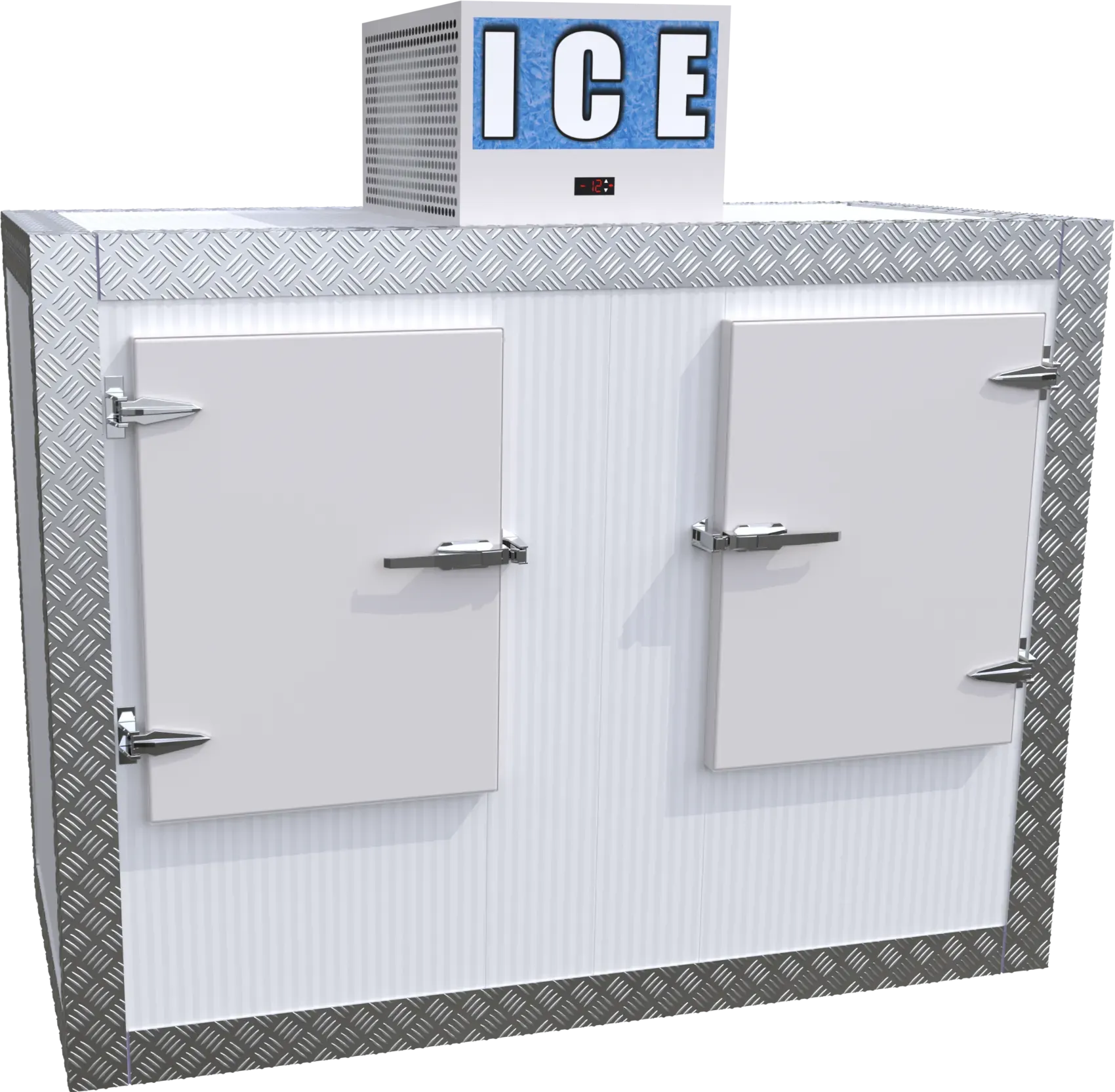

Large Ice Storage Box (3402L)
The largest ice storage box in the range: two solid doors and 3402L capacity, the most bagged ice you can hold outdoors in a single unit. A weatherproof, lockable cabinet built for high-volume sites.
- Capacity3402 L
- Doors2
- External (W x D x H)2310 x 1200 x 2470 mm
- Temperature-10°C to -15°C
Quotes are free. Tell us about your site and we will recommend the right size.
Where the Large (3402L) suits
The 3402L suits ice distributors, large forecourts and high-volume sites that need maximum bulk storage outside. The widest cabinet in the range holds the most stock per unit, so there is more ice on hand and fewer refills through peak demand.
Features
Every ice storage box in the range shares the same weatherproof build. The difference between sizes is capacity and door count.
Specifications
| Doors | 2 |
| Capacity | 3402 L |
| External size (W x D x H) | 2310 x 1200 x 2470 mm |
| Internal box size (W x D x H) | 2100 x 900 x 1800 mm |
| Insulation | 100mm urethane |
| Refrigerant | R290 |
| Temperature range | -10°C to -15°C |
| Power | 10 AMP plug |
| Defrost | Automatic, with water disposal |
Common questions
What capacity is the 3402L ice storage box?
It holds 3402 litres behind two glass doors. External size is 2310 x 1200 x 2470 mm, with an internal box of 2100 x 900 x 1800 mm.
Can the 3402L ice box be used outdoors?
Yes. It is built for outdoor use, with a weatherproof exterior, weather cover and 100mm urethane insulation in the walls, roof and floor. It is designed to sit in the weather year-round.
What refrigerant does it use?
It runs on R290, an eco-friendly refrigerant gas, with a fan-forced (not cold-wall) cooling system, auto-defrost, and a removable monoblock freezer unit for easy service.
Can it be locked?
Yes, the doors are lockable, with an internal release so the box can always be opened from the inside.
What temperature does it hold?
The range is -10°C to -15°C, set on a digital controller with display. That keeps bagged ice solid and saleable.
How is it delivered and installed?
It is delivered Australia-wide. The unit sits on galvanised chassis rails and can stand on adjustable legs or sit flat, so it is straightforward to position on a hard, level surface.
Need help choosing?
Tell us about your site and we'll recommend the right unit. Quotes are free, and we'll never push you toward a model that doesn't suit.
